Flat Panels

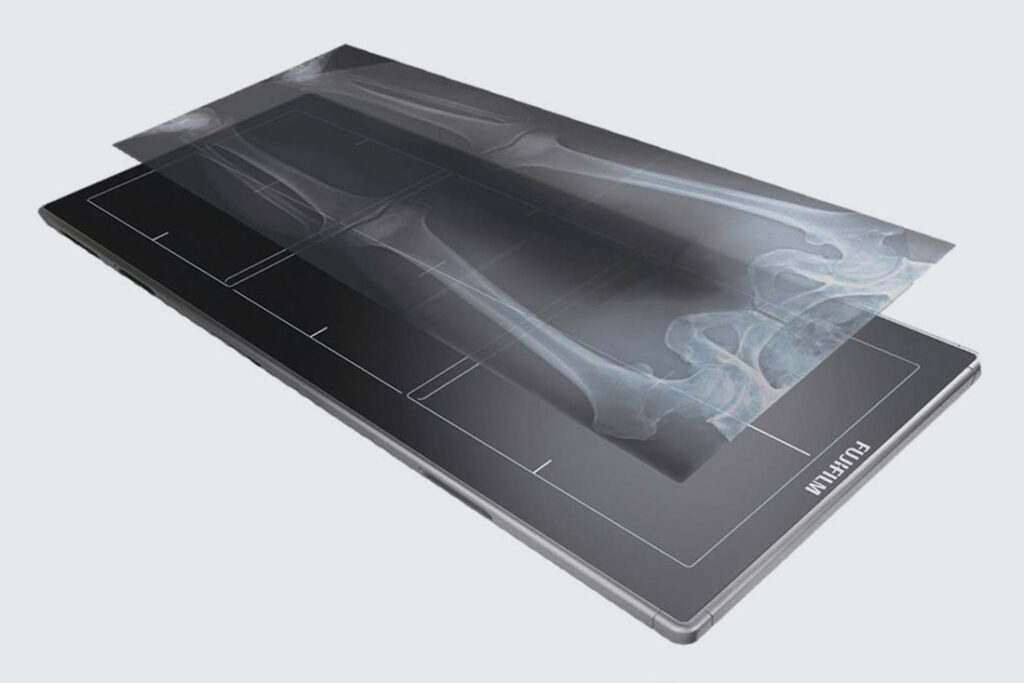

Flat Panel Detectors for Digital Radiography
Upgrade your traditional X-ray system with the power of digital radiography. Knoveltech’s flat panel detector (FPD) solutions are designed to transform analog or CR-based X-ray equipment into fully digital systems, delivering faster image processing, superior image quality, and an efficient workflow. Built for reliability and precision, these detectors enable healthcare providers to perform general radiography exams, including chest, extremities, and spine imaging, with clarity and speed.
Ultrasound Solutions
Our Services
Consulting
Equipment Installation
Preventive Maintenance
After Purchase Technical Support

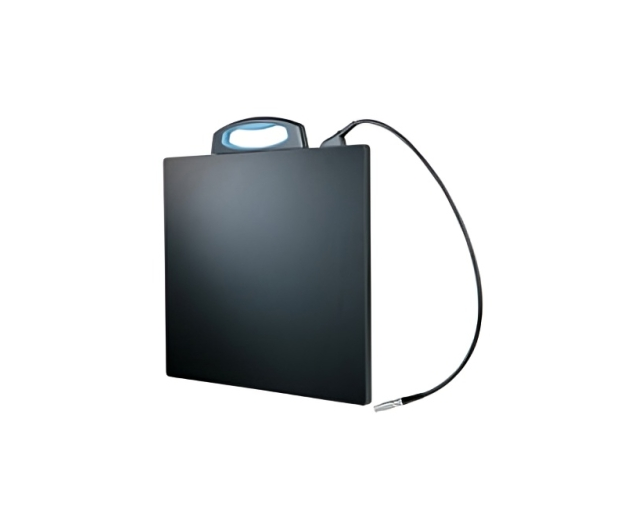

14” * 17” TETHERED PANEL DR
UNICON Control Station Software
Context Vision Image Processing Software
Automatic and Manual Image Stitching
Pixel Pitch – 143 x 143 microns
Active Array – 2448 x 2984 A/D Conversion – 16 Bits
Image Data Interface – 1000 Base-T
Power supply – AC 100-120V / 220-240V, 50/60 Hz
Mechanical Dimension – 460 x 384 x 15 mm Weight 6.6 Lbs.
Remote Installation Support Included (Internet Access Required)
Integration Kits Available For Major Manufacturers’ Generators
Options – Mounting Kit, Grid, Pre-staging &Installation
Wireless Tethered Panel available.
Context Vision Image Processing Software
Automatic and Manual Image Stitching
Pixel Pitch – 143 x 143 microns
Active Array – 2448 x 2984 A/D Conversion – 16 Bits
Image Data Interface – 1000 Base-T
Power supply – AC 100-120V / 220-240V, 50/60 Hz
Mechanical Dimension – 460 x 384 x 15 mm Weight 6.6 Lbs.
Remote Installation Support Included (Internet Access Required)
Integration Kits Available For Major Manufacturers’ Generators
Options – Mounting Kit, Grid, Pre-staging &Installation
Wireless Tethered Panel available.
CESIUM 17” * 17” FIXED PANEL
UNICON Control Station Software
3 Year Panel, Workstation & Software Warranty
Context Vision Image Processing Software
Automatic and Manual Image Stitching
Pixel Pitch – 143 x 143 microns
Active Array – 3088H x 3072W A/D Conversion – 14 Bits
Image Data Interface – 1000 Base-T
Power supply – AC 100-120V / 220-240V, 50/60 Hz
Mechanical Dimension – 512 x 495 x 43 mm Weight 20 Lbs
Remote Installation Support Included (Internet Access Required)
Integration Kits Available For Major Manufacturer’s Generators
Options – Mounting Kit, Grid, Pre-staging & Installation.
3 Year Panel, Workstation & Software Warranty
Context Vision Image Processing Software
Automatic and Manual Image Stitching
Pixel Pitch – 143 x 143 microns
Active Array – 3088H x 3072W A/D Conversion – 14 Bits
Image Data Interface – 1000 Base-T
Power supply – AC 100-120V / 220-240V, 50/60 Hz
Mechanical Dimension – 512 x 495 x 43 mm Weight 20 Lbs
Remote Installation Support Included (Internet Access Required)
Integration Kits Available For Major Manufacturer’s Generators
Options – Mounting Kit, Grid, Pre-staging & Installation.
DR Flat panel digital radiography upgrade solution offering a 14″ x 17″ tethered detector and/or a 17″ x 17″ fixed detector.
- Designed for general radiographic applications using a unique image processing system and proprietary flat panel detector technology.
- DRive ensures superior image quality for today’s high standards in precise diagnosis with a spatial resolution of 3.5 lp/mm.
- DRive Multiple System Detector Combinations.
- Offering a 17”x17” fixed panel and 14”x17” tethered panel solution as well as a dual detector offering (fixed, tethered, or a combination of both), with your choice of Cesium Iodide or Gadolinium Oxysulfide detectors.
- Image Capture and Preview is Less Than 3 Seconds.
A preview image is displayed immediately after X-ray exposure, allowing for prompt image confirmation, fast network distribution, and quick patient throughput.
